5L Tinplate linear Beer Filling Machine B5L-4

This machine is a small 5L beer filling and capping machine developed by our company. It is suitable for 2 L to 10 L tin bucket, mainly suitable for large hotels, bars and beer producers. It has the advantages of high automation, simple operation, convenient use and less area.

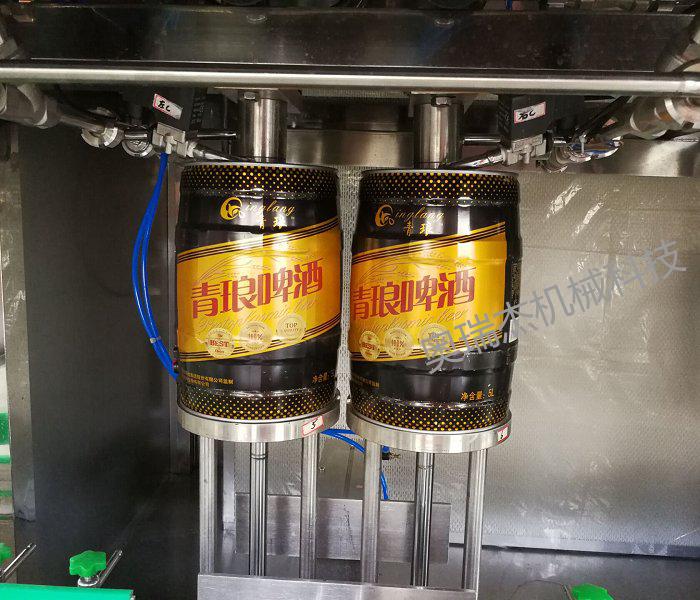

1. Filling valve adopts mechanical filling valve with high precision. with no bottle and no vacuum mechanism.

2. External mechanical valve structure, no spring and sealing parts in the valve body.
3. Double vacuum pumping capacity with high pressure bubbling device.
4. When flushing or pouring wine, the wine valve will be closed automatically due to the explosion caused by the quality problem of the bottle, and there is an automatic bottle breaking washing device.
5. The lifting of wine cylinder and gland head are electric lifting, suit for the bottle type of different height within the design range.

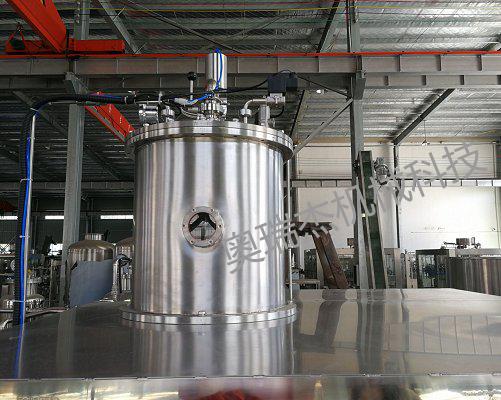

6. The liquid level of the material in the filling cylinder is controlled by the electric probe, the liquid level of the cylinder is stable and the filling is reliable
